This is an STA Workbook Program widely used by the Offshore Industry.  It was originally developed for STA in-house use and extended for wider use by STA clients.  It can be used for suction embedment calculations, as well as for installed anchor pile capacity analysis.

Microsoft Excel Worksheet


The full user's manual can be found at stapile3.pdf

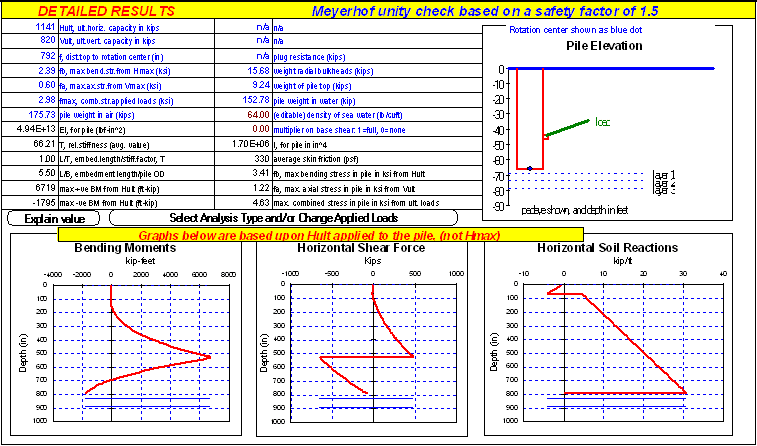

Additional results are shown below:

Microsoft Excel Worksheet


Note that all graphs are "live" and change virtually instantly on a modern PC.  This includes the diagram showing the applied loads.  An "explain" feature is built into the workbook, enabling the user to understand the meaning of any cell.
